Sale!

CCJH Sliding Door System Stainless Steel Suitable for Single Door T Type Roller Hanger Barn Door Hardware Kit 6FT/5.5FT

(3 customer reviews)

$67.50$140.50

SKU: N/A Category:

Planets

STAINLESS STEEL SLIDING BARN DOOR HARDWARE KITS

This sliding wood door hardware kit set is a great design for home, which is a popular new way to bring innovation into the home and close off bedroom and side room in a stunningly unique way. The door is hung on a piece of hardware with a wheel.That rolls along a track mounted to the wall.

Product Advantage

Keel design of sliding rail, stable and durable,Premium Nylon door stops, reduce noise and soft close,Exact rail connector, connect seamlessly and move smoothly.

T Roller:

Hangers:

The wheel is made by duty nylon, very durable and smooth. Fit door panel thickness: 1.18″-1.57″ (30mm -40mm).

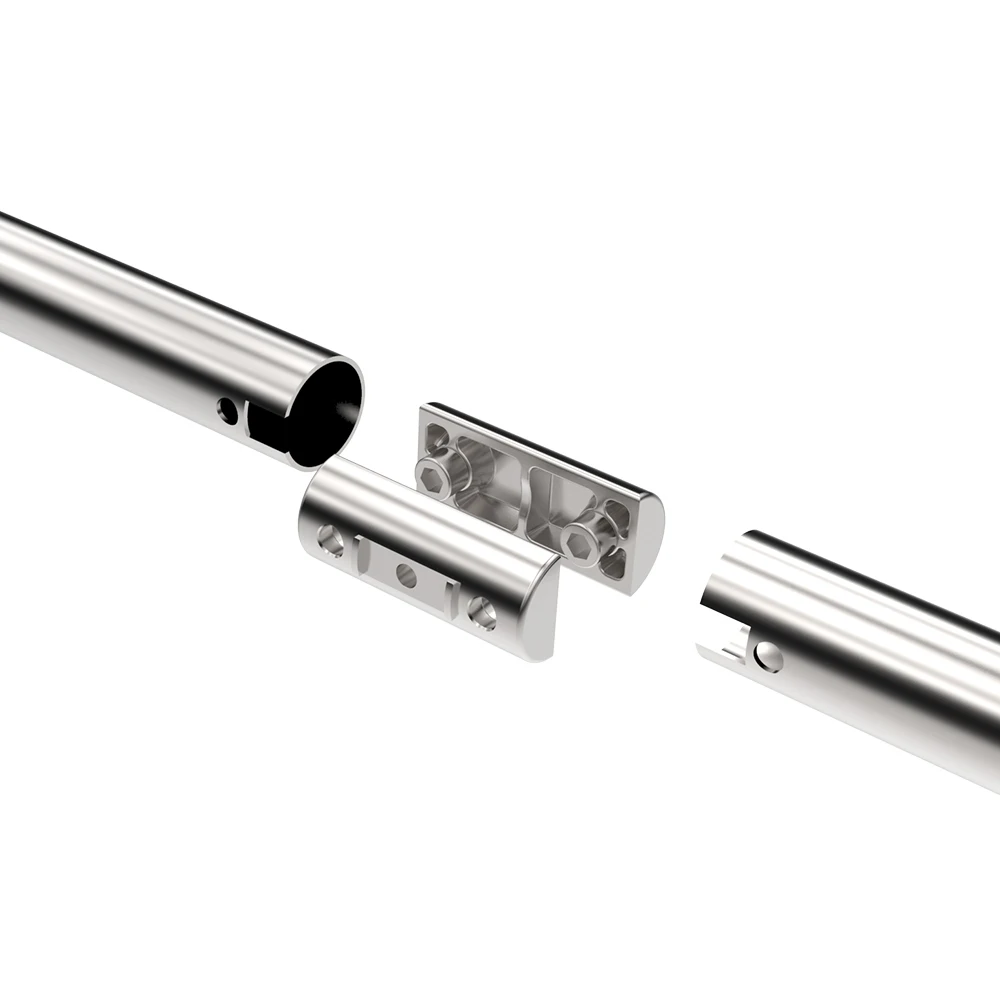

Splice Rails:

The rails in the stainless steel kit are made up of 25 mm diameter stainless steel pipe splice.

The rails of different sizes are made up of a patchwork of different numbers of 16.02″-36.02″ (407mm-915mm) tracks in length.

Rail Spacer & Lag Bolts:

With lag bolts and the spacers, it is used to connect the rail on the wall.

Anti-jumpers:

It can be adjusted, make the installation process more easy.

Door Stoppers:

Door stoppers slide along the rail and tighten down at any point to stop your doors anywhere you want, and they’re cushioned by rubber caps for a quiet close.

Floor Guide:

Mark center line of overlap and place center of floor guide in line.Slide the door closed and secure the floor guide.

Easy to Install

Complete barn door hardware kit, step by step instruction installation with detailed graphic description, enjoy a funny DIY installation process.

STEP 1. Make the stud locations. Make sure that the track is level and allow for the installation height of the floor guide. If the floor is not level, refer to the highest point to avoid affecting the movement of the sliding door.

STEP 2. Attach head board on the wall (if needed).

STEP 3. Install the metal track on the wall. Spliced track, assembly needs to be completed in advance.

STEP 4. Mount the stoppers on the track.

STEP 5. Install the rollers on the door.

STEP 6. Mount the anti-jump disks.

STEP 7. Mount the door guides.

STEP 8. Lift and place the door on the track.

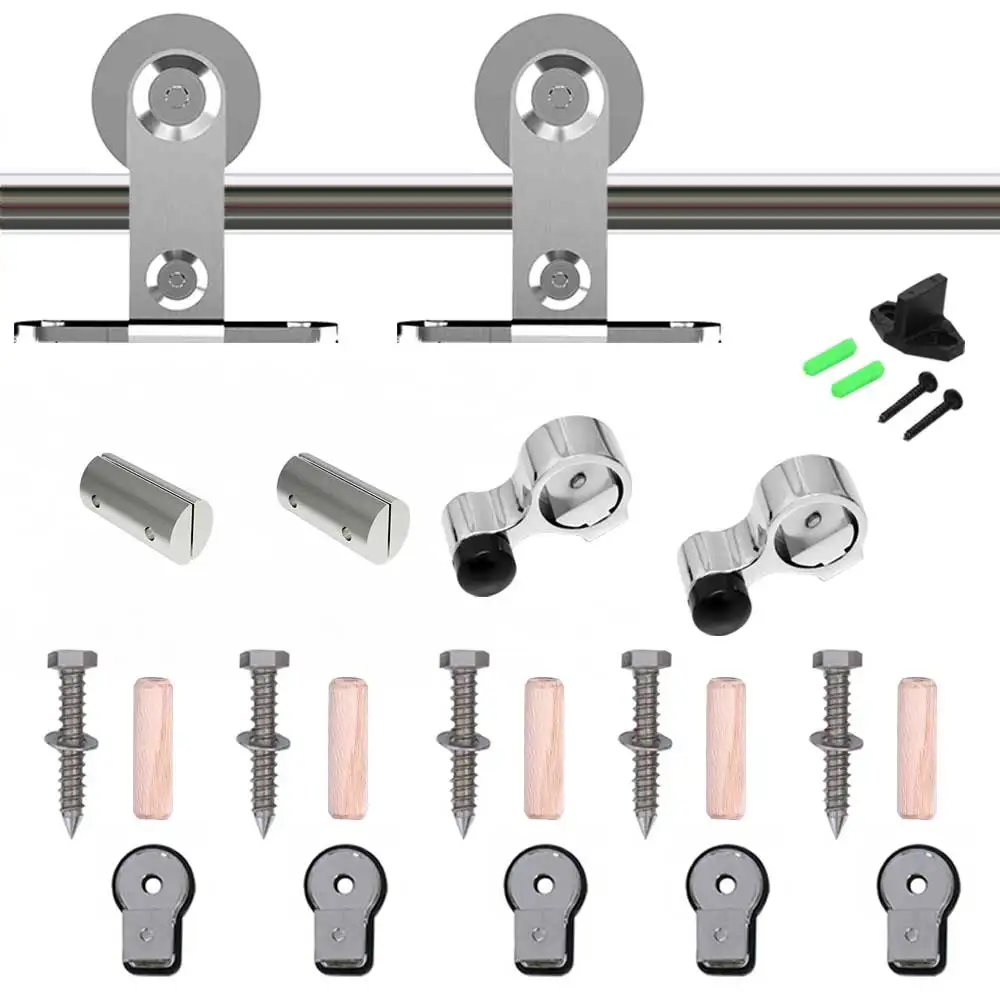

Packaging List

Spliced track

2 x Door Stopper

2 x Anti-jump Pad

2 x Hanger(for single door)

1 x Door Guide (T type)

1 x Hex Wrench

All other necessary hardware is included as you see in the pictures

How to Choose Track Size

Hang Single Door: rail’s length should be two times of door panel’s width

(If door width is 3.3FT/100cm, you will need 6.6FT/200cm Kit for single door)

Ships From

, ,

Length

,

Color
